Port of Thisvi

Port of Thisvi

INTERBETON SA - THISVI Terminal
UN LOCATOR CODE: GRITHI
PORT ID: -
Security Level: -
CHART No. 1600 B.A. / Nr 232 of Hellenic Hydrographic (Edition Oct.99)
VATHI BAY: 38° 12΄ 59΄΄ Ν - 22° 55΄ 48΄΄ Ε

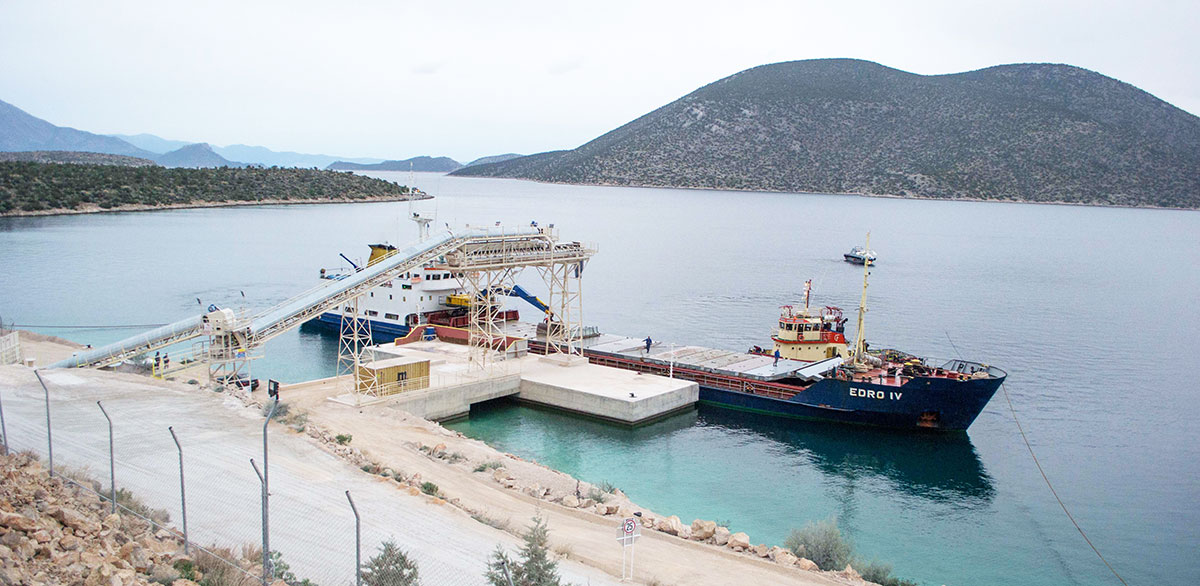

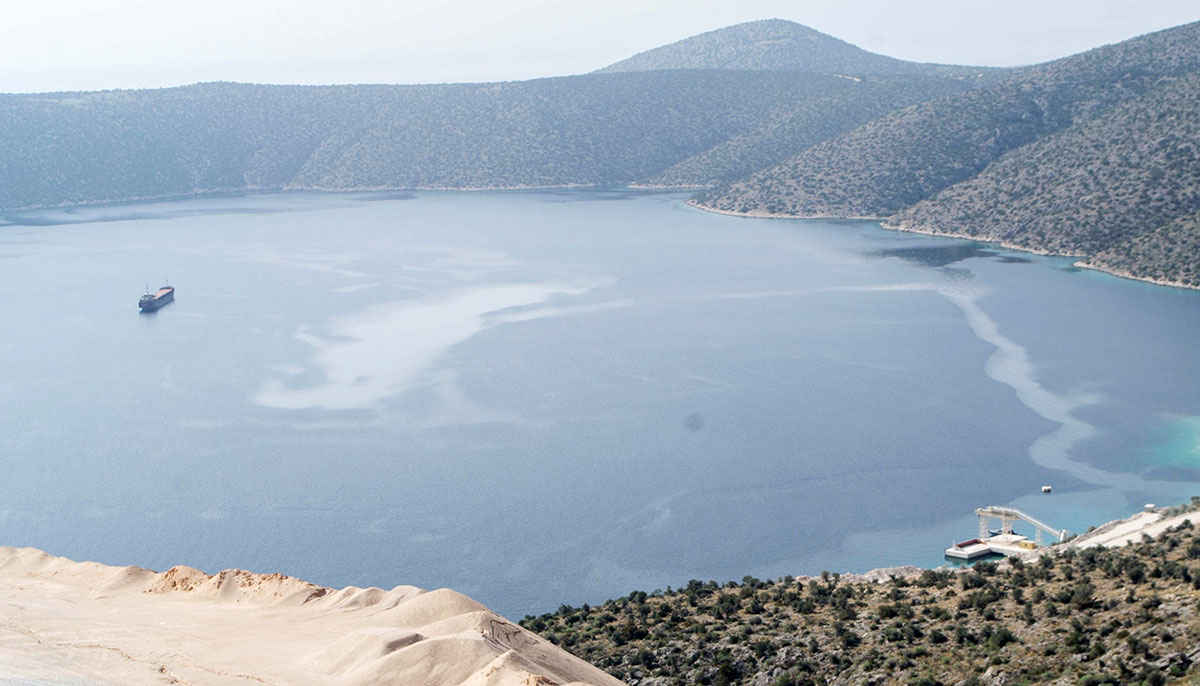

Thisvi has two port sites. Port regarding "INTERBETON SA" is a new built terminal for loading aggregates. It is a private jetty owned by “INTERBETON SA” and it is situated inside Vathy Bay at Corinth Gulf. Loading is available through a conveyor belt.

port of Thisvi restrictions

Port of Thisvi RESTRICTIONS:

  • LOA: 110-120m
  • BEAM: 15,5-17m
  • DRAFT: 6,2-6,8m
  • AIR DRAFT: 9m (water line to lowest part of the loading chute)

PILOTAGE

Pilotage is compulsory for vessels over 1000 tons gross. The pilot boarding position is located at the East point of Fonias island, between Fonias & Groboloura Islands. Master should be on VHF on channel 06 & 10 for pilot. Pilots are called by the Thisvi Port Authority on VHF on channel 12.

TUGS

Tug boats are available and compulsory according to the prevailing rules of Thisvi Port Authority for vessels over 1000 tons gross.

BERTHING

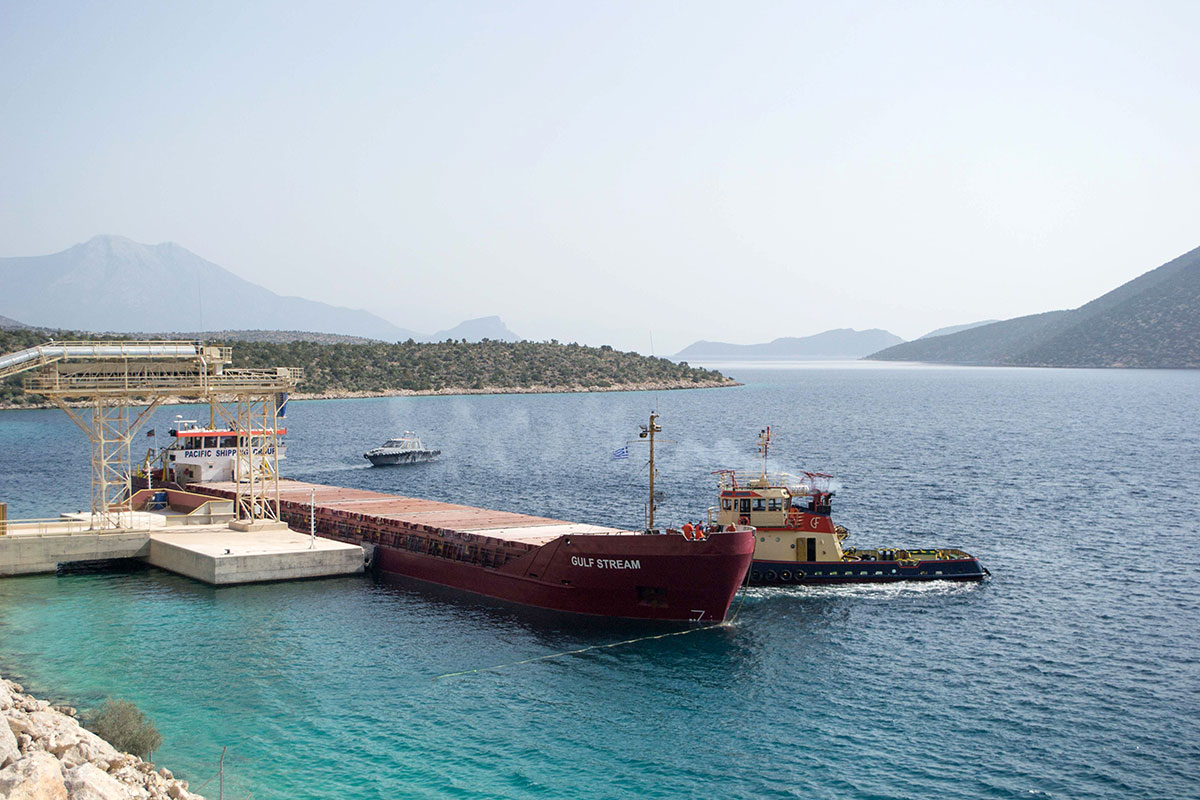

Vessel will berth at ‘INTERBETON SA’ loading installation – private jetty
Vessel will touch in a dock of 35 m long (dock head)
There are 5 bollards at the dock head, 1 floating buoy, 4 buoys on the jetty and 4 available ashore. (see attached plan) for shore lines.

LINESMEN

Available and compulsory

FIRE PRECAUTIONS

No fire works or maintenance

FRESH WATER

No such facility

BUNKERING

No such facility. Vessels should advice ETA at least 72 & 24 hours before arrival to the agent.

port of Thisvi restrictions

DOCUMENTS

Before Arrival:
  • 1/ Pre-arrival Information Proforma (ISPS)
  • 1/ One Crew & Passenger list
  • Expire date of Mandatory Expanded Inspection (Paris Memorandum)
  • P&I entry certificate
  • CLC Certificate (Certificate of insurance or other Financial Security in Respect of Civil Liability for Bunker Oil Pollution Damage)
  • 1/ Annex II
  • 1/ IOPP Master Declaration
  • 1/ Ship’s Particular
On Arrival:
  • 7/ Crew List , 5/ Passenger List
  • 2/ Ship’s store Declaration List
  • 2/ Crew effects Declaration List
  • 2/ Electronic Equipment Declaration List
  • 1/ Photocopies from specific certificates (after contacting Agent)
  • 1/ Health Declaration
  • 2/ Ship’s Arrival Cards (after contacting Agent)
* In case that vessel will call from Greek Port:
  • 1/ Custom’s papers (Delotiko) and 1/ photocopy of them
  • Sailing permission from previous port
